Metal Structure C Channel Roll Forming Machine , PPGI Material C Purlin Machine

Name: Metal Structure C Channel Roll Forming Machine PPGI Material C Purlin Machine
Brand: Lvchangda
Price: 1 USD

China Metal Structure C Channel Roll Forming Machine , PPGI Material C Purlin Machine wholesale

Brand Name : Lvchangda

Model Number : MZ2017091004

Certification : ISO CE SGS

Place of Origin : Jiangsu, China

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 20 sets per month

Delivery Time : 45 days after receiving the deposit

Packaging Details : Nude package in 40 Foot container

material : PPGI

Type : Purlin machine

Condition : New

Warranty : 1 year

Control System : PLC

Color : optional

Usage : Building

Name : Purlin roll forming machine

Cutting : Hydraulic cutting

Working pressure : 20 Mpa

Contact Now

Metal structure cz purlin roll forming machine

Breif introduction

This machine can produce both C and Z purlin, normally bottom width 100mm to 300mm, with thickness 1mm to 3mm, but we can customize the machine for you, it is fully automatic with high accurancy, which include decoiler, leveling, roll former, cutting and output table.

Technical paremeters

Description

Material Spec

colored steel sheet, galvanized steel sheet

Main motor power

11 kw

Forming speed

10-15m/min

Diameter of roller

80 millimeter

Thickness of Coil Sheet

1.0-3.0 millimeter

Material of cutter

Mould cutting

the Effective width of steel sheet

80-300 millimeter

Hydraulic cutting power

7.5 kw

Total Weight

about 4.5ton

Voltage

380 volt/3 phase

Roll stand

13 groups

PLC control

Computer adopt PLC, Mitsubishi FX-IS

Dimension

9.5m*1.5m*1.2m

Roller material

GCR15 with quenching treatment

Frequency converter

containing

Rotary Encoder

OMRON

Material of cutter

Cr12

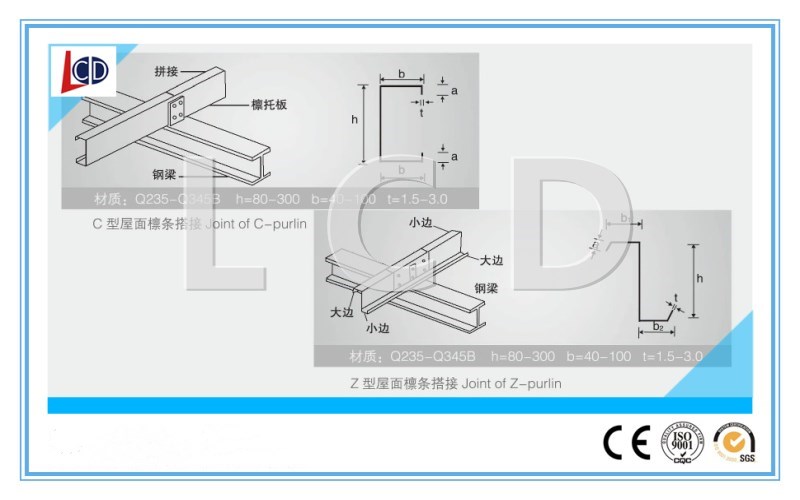

Reference drawings

Metal Structure C Channel Roll Forming Machine , PPGI Material C Purlin Machine

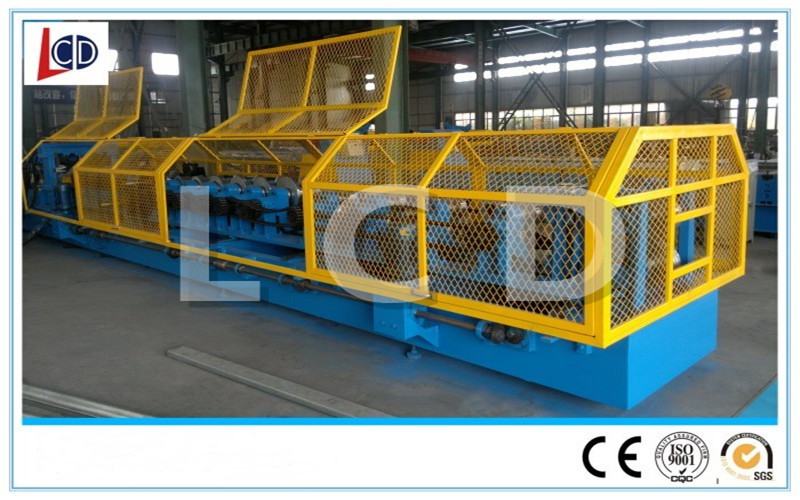

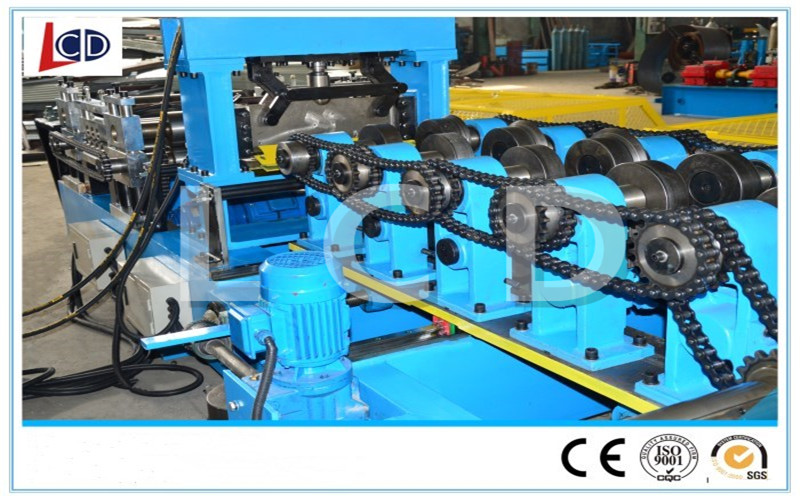

Pictures of the machines

Metal Structure C Channel Roll Forming Machine , PPGI Material C Purlin Machine
