Small ribs roof roll forming machine for making sandwich panel
Wuxi LCD Technology Co., Ltd is based in Wuxi City, Jiangsu Province, we are professional manufacturer of all kinds of roll forming machine, production line, punching machine, slitting and cutting machine, we have been in this area for more than 10 years, we have clients all over the world.
Introduction of PU solidify conveyor machine
1. The solidify of PU sandwich panel is be conveyed by double rubber belt.
2. The length of the BELT machine is about 24m, which consists of upper frame and lower frame,each frame has two sections.
3. The width of rubber board is 1100mm, the range of adjusting distance between upper and lower rubber board: 30mm,40mm,50mm .Horizontal distance between the two sides can not be adjusted.
Components of the machine
Decoiler( manual or hydraulic)--------------------------------------------------------1 set
Feeding---------------------------------------------------------------------------------------1 set
Leveling system----------------------------------------------------------------------------1 set
Roll former------------------------------------------------------------------------------------1 set
Hydraulic cutter------------------------------------------------------------------------------1 set
Run out table---------------------------------------------------------------------------------1 set
Working procedure
Decoiler – roll forming—Polyurethane Foaming and Injecting—Heating-- Compressing—Cutting--– product to run out table
Main technical datas
1). Dimension: 1700mm*1000mm*800mm
2). Width of feeding: Max 1500mm
3). Maximum loading coil weight: 5000kg
4). Inter diameter: 450-510mm
5). Mode of expand &fight: Inner expand &fight by Hydraulic
6). Way of feeding: Manual
7). PU foam thickness: 10-300mm
8). Standard Sandwich Panel Size: Max1250mm x 4000mm( W*L*H)
9). Linear Speed of production: 2-5 m/min
10). Maximum sheet embossing speed: 10 m/min
11). Reciprocating times of injection head: <60( per minute)
12). Production type: Continuous production with PLC controlling
13). Composite structure: Position fixed by double rubber tracker
14). Foaming system: Totally automatically continuous foaming, quantity of foaming could be stepless adjustable
15). Main Power of production: ≥ 35KW
16). Cutting: Pneumatic piston driving, non-stop cutting via sliding table
17). Electronic controlling system: Full-frequency PLC controlling system
18). Raw Material: 0.4-0.8mm
19). Coil Width: 1250mm or customized
20). Working Speed: 0-10 m/min
21). Roller Material: Superior alloy steel forged parts
22): Roller Size: ￠320mmx 1250 (Coil width)
23). Main Motor Power: 11KW
Brief introduction
This production line is a kind of specialized equipment for producing sandwich panel with the middle layer of anti-combustion polyurethane and with aluminum foil as the top and bottom face layer.s The sandwich panel is 10-40mm in thickness, 1250mm in width, length determined by the customer. The sandwich panel is mainly used as keeping warm for wall and roof (or ceiling). Different insulating panels with other soft facing layers could also be produced on the line.

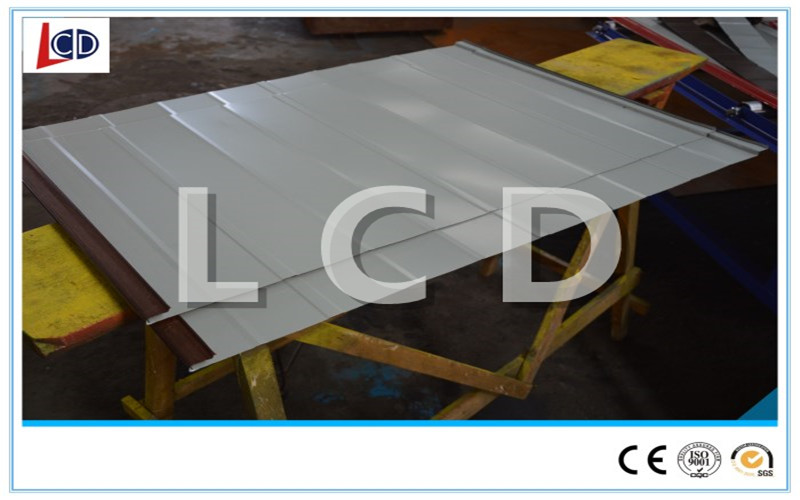

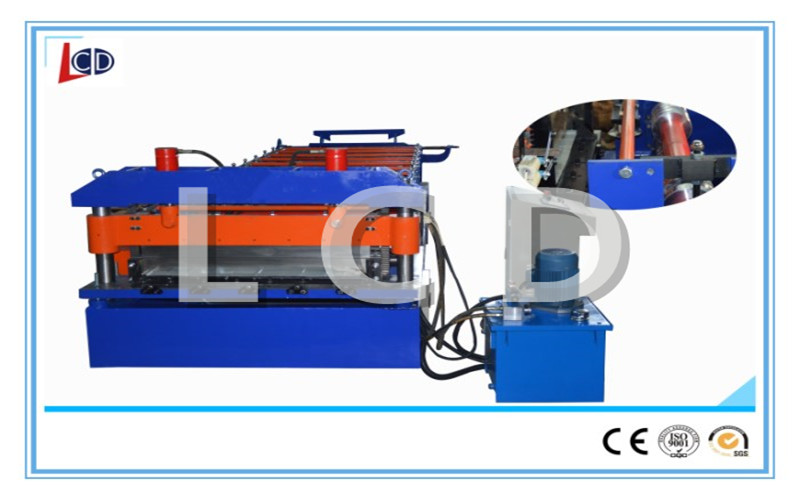

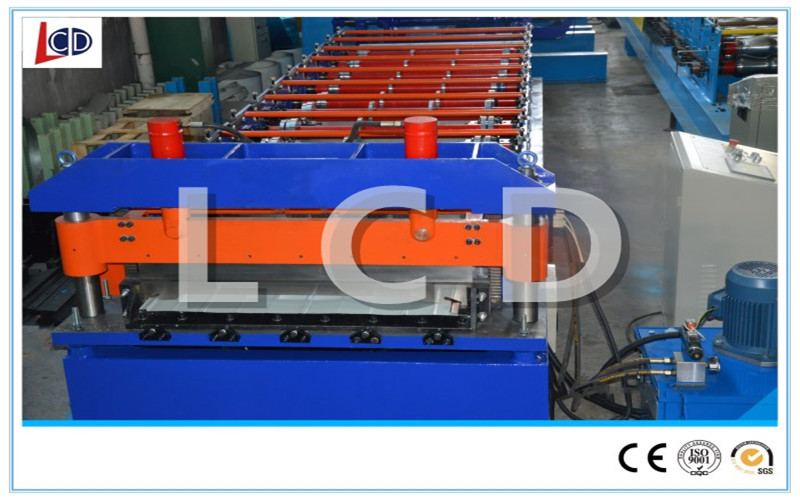

Machine pictures
