50Hz Cold Square Tube Rolling Machine Flying Saw Cutting For Welded Pipe SGS Certification

Brand Name : LCD

Model Number : MZ2017093004

Certification : ISO SGS CE

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C

Supply Ability : 10 Sets per Month

Delivery Time : 55 Working days after receiving 30% deposit

Packaging Details : Nude package in 40' container

Condition : New

Type : Pipe Mill

Pipe Material : Steel

Power(W) : 11KW

Warranty : 1 Year

Voltage : 80V 50Hz 3Phase/Customized

Cutting system : flying saw cutting

Weight : 12 Ton

Name : Welding pipe roll forming machine

Computer : PLC Panansonicc

Contact Now

High frequency welding pipe roll forming machine

Machine discription

We are Wuxi LCD Technology Co., Ltd, which specialized in manufacturing all types of roll forming machine for more than 10 years, we customize the machine accoring to customers' requirements, thanks very much for visiting our website!

This type of High frequency welding pipe roll forming machine is includes all the parts to assemble a complete production line, and with diffents shapes and sizes of welding pipe, we have professional technician team to design the machine according to your requirements.

Main Technical parameters

Roll former

Name	Discription
Forming Pipe OD	Φ15mm～φ63mm
Square Pipes	15×15mm～35×35mm
Rectangular Pipes	10×20mm～30×40mm
Forming Pipe Wall Thickness	0.7-3.2mm(Square/Rectangular Pipe≤2.5mm)
Forming speed	0-80m/min
Number. of forming stands, horizontal	7
Number. of forming stands, vertical	8
Number. of sizing stands, vertical	6
Turks Head	2 sets, with one head, four rolls Φ35,40Cr
Shaft dia. and material of horizontal roll stand	Φ60mm, Material 40Cr
heat treatment: of horizontal rollers	HB260～290, HRC50～55
Shaft dia. and Material of vertical roll stand	Φ40, Material 40Cr
material of spiral bevel gears	20CrMnTi, Carbonization quenching
Bur Scraping Cutter	2 Sets
Main moto	DC 2×75kW

Flying Saw

Name	Discription
Forming Pipe OD	Φ15mm～φ63mm
WT of pipe	0.7-3.2m
Fixed Cutting length	4~12m
Cutting Accuracy	±5mm
Saw blade cutting motor	AC15kW
Carriage driving motor	DC 15kW
Cutting Speed	Max. 90m/min
max cutting	13times/min

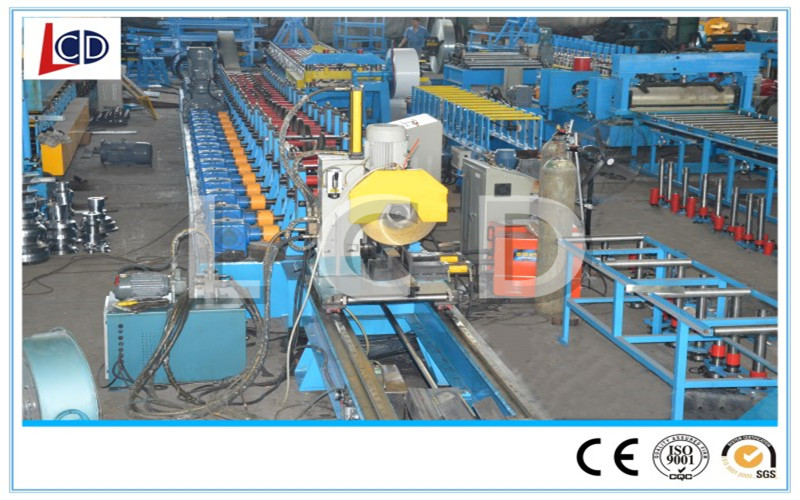

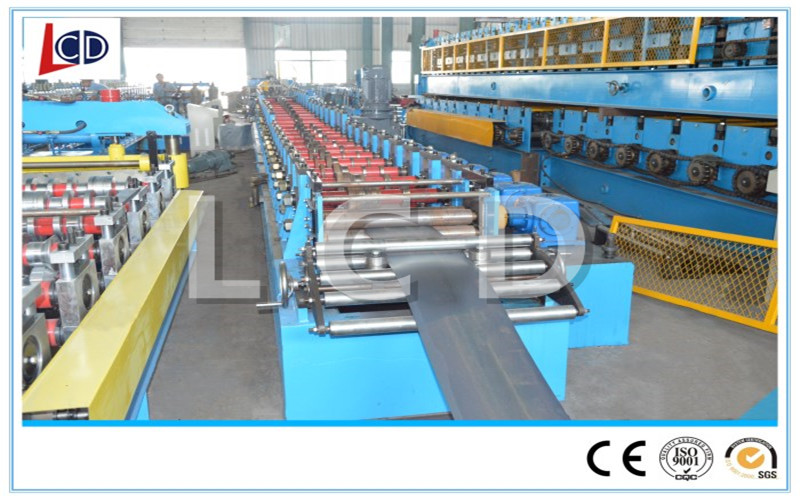

Machine pictures

50Hz Cold Square Tube Rolling Machine Flying Saw Cutting For Welded Pipe SGS Certification
